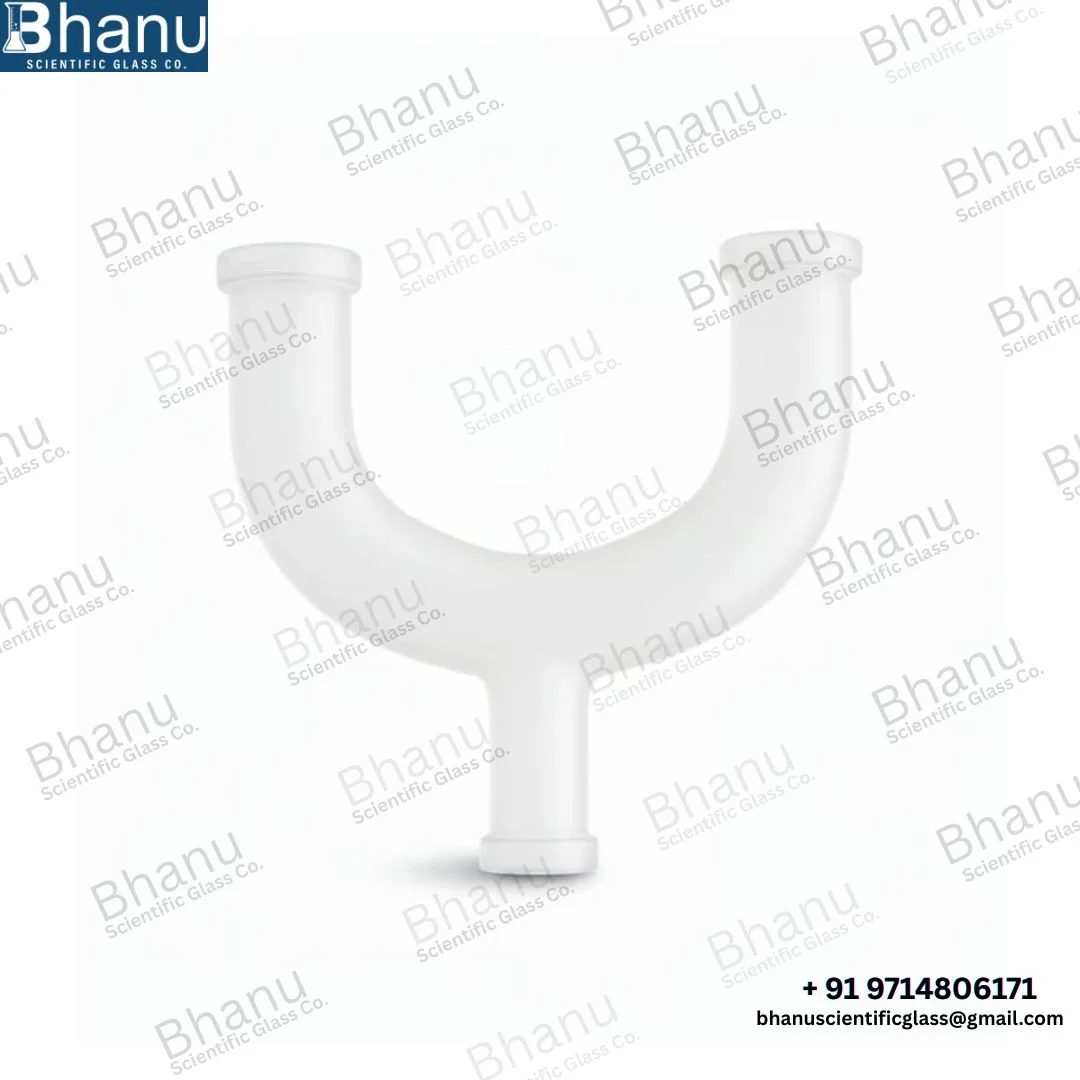

Bhanu Scientific Glass Co. offers precision-engineered U Bends with Bottom Outlet, ideal for vacuum lines, chemical pipelines, and process vessels where smooth fluid direction change and controlled drainage are required.

The U Bend with Bottom Outlet is a borosilicate glass 3.3 pipeline component designed to:

• Redirect fluid flow 180° smoothly
• Allow complete drainage through a bottom outlet
• Integrate with reactors, condensers, and other glass pipeline systems

This component is widely used in:

• Solvent recovery systems
• Vacuum distillation setups
• Laboratory and pilot plant pipelines
• Chemical and pharmaceutical processing

Its smooth internal surface ensures minimal pressure drop and allows visual monitoring of flow, making it perfect for corrosive and sensitive fluids.

Technical Specifications

Parameter	Specification
Material	Borosilicate Glass 3.3
Bend Type	U-Bend (180° turn)
Bottom Outlet DN	10–50 (standard, customizable)
Nominal Diameter (DN)	15 – 800 (custom DN available)
Operating Pressure	Atmospheric to moderate positive pressure
Vacuum Rating	Full vacuum compatible
Temperature Range	-50°C to 200°C
Surface Finish	Smooth interior for low pressure drop
Optional Features	Side ports, sampling ports, extended outlets, flanges

Key Features

• 180° Fluid Redirection for compact pipeline layouts
• Bottom Outlet allows complete drainage or sampling
• Chemical Resistance for acids, bases, and solvents
• Transparent Glass for visual flow monitoring
• Customizable: Diameter, outlet size, port placement

Applications

• Vacuum pipelines for chemical distillation
• Solvent recovery systems
• Reactor connections in lab or pilot setups
• Drainage and sampling from pipeline networks
• Integration with condensers, separators, and process vessels

Benefits

• Efficient fluid redirection with minimal turbulence
• Safe drainage and sampling via bottom outlet
• High durability in chemical and thermal conditions
• Transparent design enables real-time visual inspection
• Fully customizable for process-specific needs

Industries We Serve

• Chemical & Petrochemical
• Pharmaceutical & Biotech
• Food & Beverage
• Research & Development Labs
• Pilot Plants & Industrial Process Systems

Optional Accessories

• Side ports for temperature or pressure monitoring
• Custom flanges and clamps for pipeline integration
• Protective jackets for insulation or thermal control
• Adapter joints for connecting to various reactor or condenser systems

FAQs

Q: Can the bottom outlet be fitted with valves?
A: Yes, compatible with standard glass or metal valves.

Q: Is it suitable for vacuum pipelines?
A: Yes, fully vacuum compatible.

Q: Can the diameter or outlet size be customized?
A: Absolutely, we provide custom DN and outlet sizes per process requirement.

Q: What is the maximum operating temperature?
A: Up to 200°C depending on fluid and setup.
