Support of Column systems are engineered frameworks designed to safely carry the vertical load of glass columns while maintaining precise alignment, structural rigidity, and thermal flexibility. These systems are essential for protecting glass process equipment from mechanical stress, vibration, and thermal expansion effects.

Functional Role in Glass Plants

The primary function of a column support system is to:

• Transfer column weight directly to the foundation
• Maintain the column strictly under compressive loading
• Prevent bending, torsion, and shear forces on glass sections
• Ensure long-term dimensional stability of tall assemblies

Engineering Design Concept

Single Fixed Point Concept

• Column weight is carried at one defined base point

Guided Expansion Points

• Upper supports guide lateral movement only
• Vertical movement is unrestricted to accommodate expansion

Fail-Safe Structural Redundancy

• Bracing ensures stability even under abnormal loading conditions

Structural Configuration & Materials

Frame Construction

• Square or rectangular tubular steel sections
• Available in:
• Galvanized Mild Steel
• Powder-Coated Carbon Steel
• Stainless Steel (SS304 / SS316)

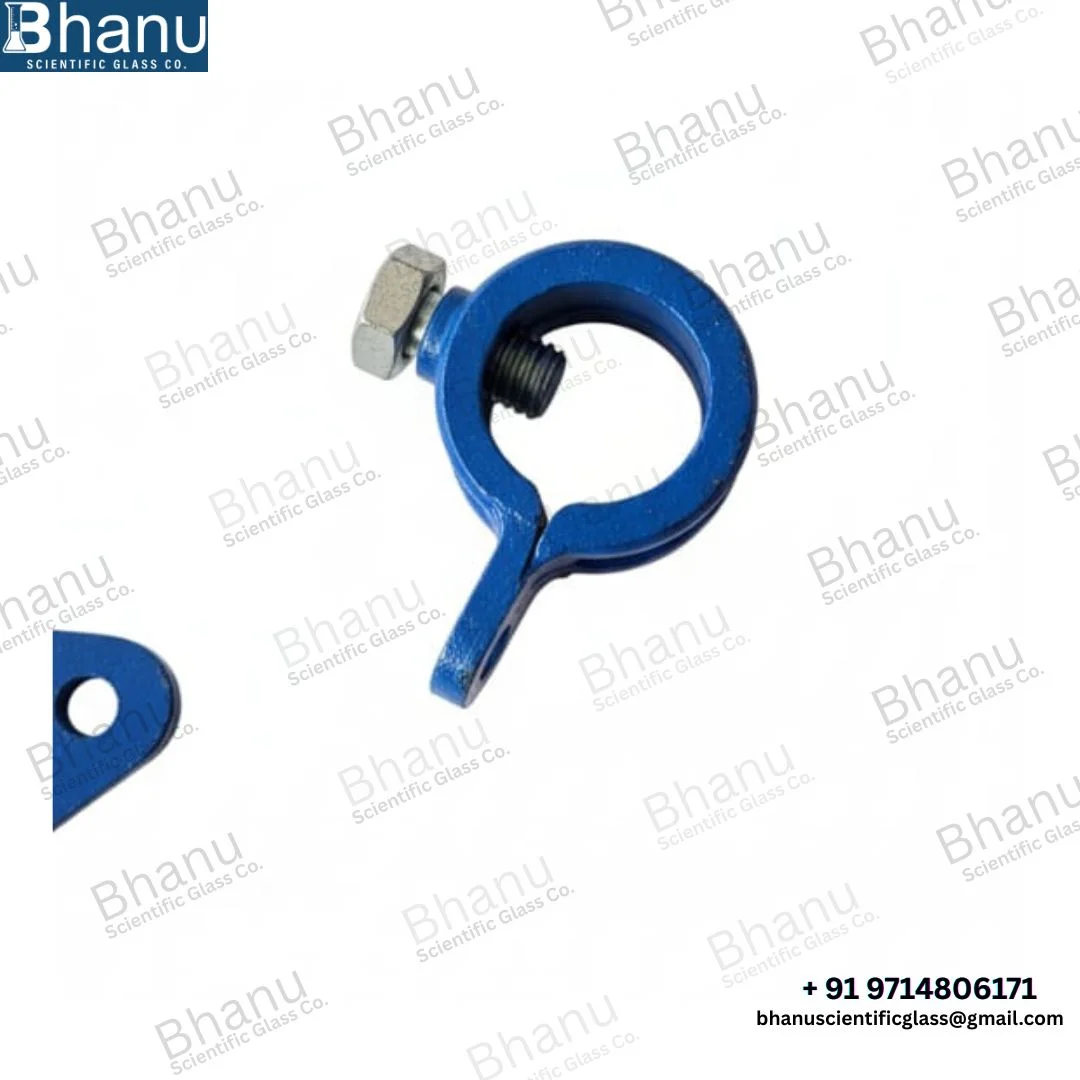

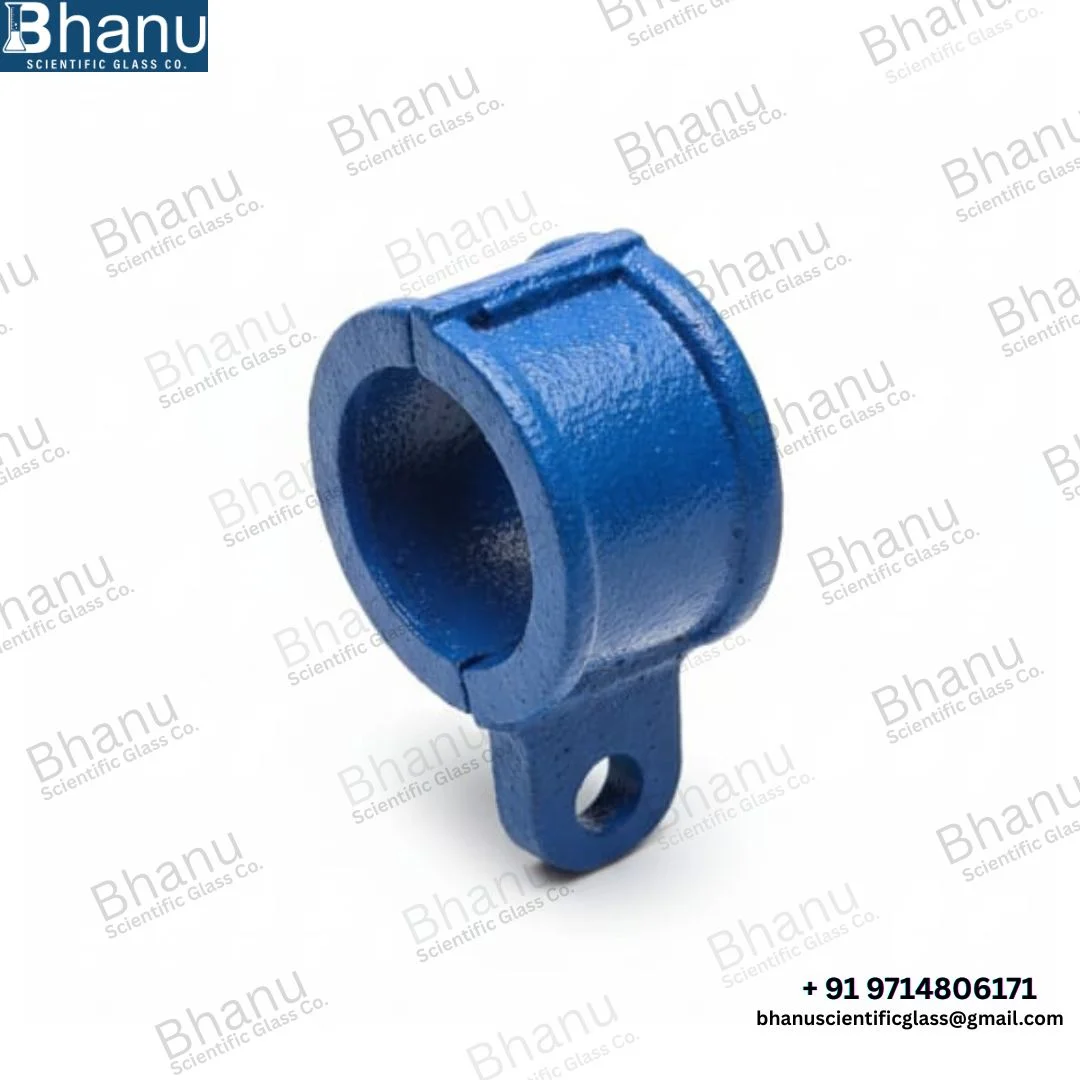

Connection Hardware

• Heavy-duty clamps and brackets
• High-tensile fasteners
• Adjustable leveling components

Load Classification

Load Type	Consideration
Dead Load	Self-weight of glass column
Operating Load	Liquid holdup during operation
Thermal Load	Expansion due to temperature
Dynamic Load	Vibration, start-stop cycles
Seismic / Wind	Site-specific considerations

Thermal Stress Management

Glass and metal have different coefficients of expansion.
To manage this:

• Only one point is rigidly fixed

• Upper supports remain sliding or floating

• No axial locking above base level

• Expansion gaps are maintained intentionally

This design avoids thermal cracking and joint failure.

Vibration & Stability Control

• Bracing arms reduce sway and oscillation
• Optional rubber or PTFE inserts for vibration isolation
• Structural tie-ins to building columns or walls
• Suitable for installations with pumps, agitators, or vacuum systems

Installation & Commissioning Sequence

• Foundation preparation and leveling

• Fixing base support frame

• Vertical placement of glass column

• Alignment verification (plumb & concentricity)

• Installation of guide supports

• Final bracing and tightening

• Load and movement inspection

Integration with Other Support Systems

Support of Column systems integrate seamlessly with:

• Column Base Support Frames
• Counter Balance Supports
• Vessel Support Systems
• Structural Support Components
• Platforms and access structures

Maintenance & Inspection

Periodic checks recommended for:

• Fastener tightness
• Alignment accuracy
• Corrosion protection
• Guide movement clearance

Minimal maintenance required due to static load design.

Typical Applications

• Distillation columns

• Absorption and stripping columns

• Gas scrubbers

• Fractionation units

• Pilot and demonstration plants

• High-temperature glass assemblies

Key Advantages

• Designed specifically for glass equipment safety

• Eliminates bending stress on glass

• Supports tall and heavy column assemblies

• Modular, scalable, and site-adaptable

• Long service life with minimal maintenance
