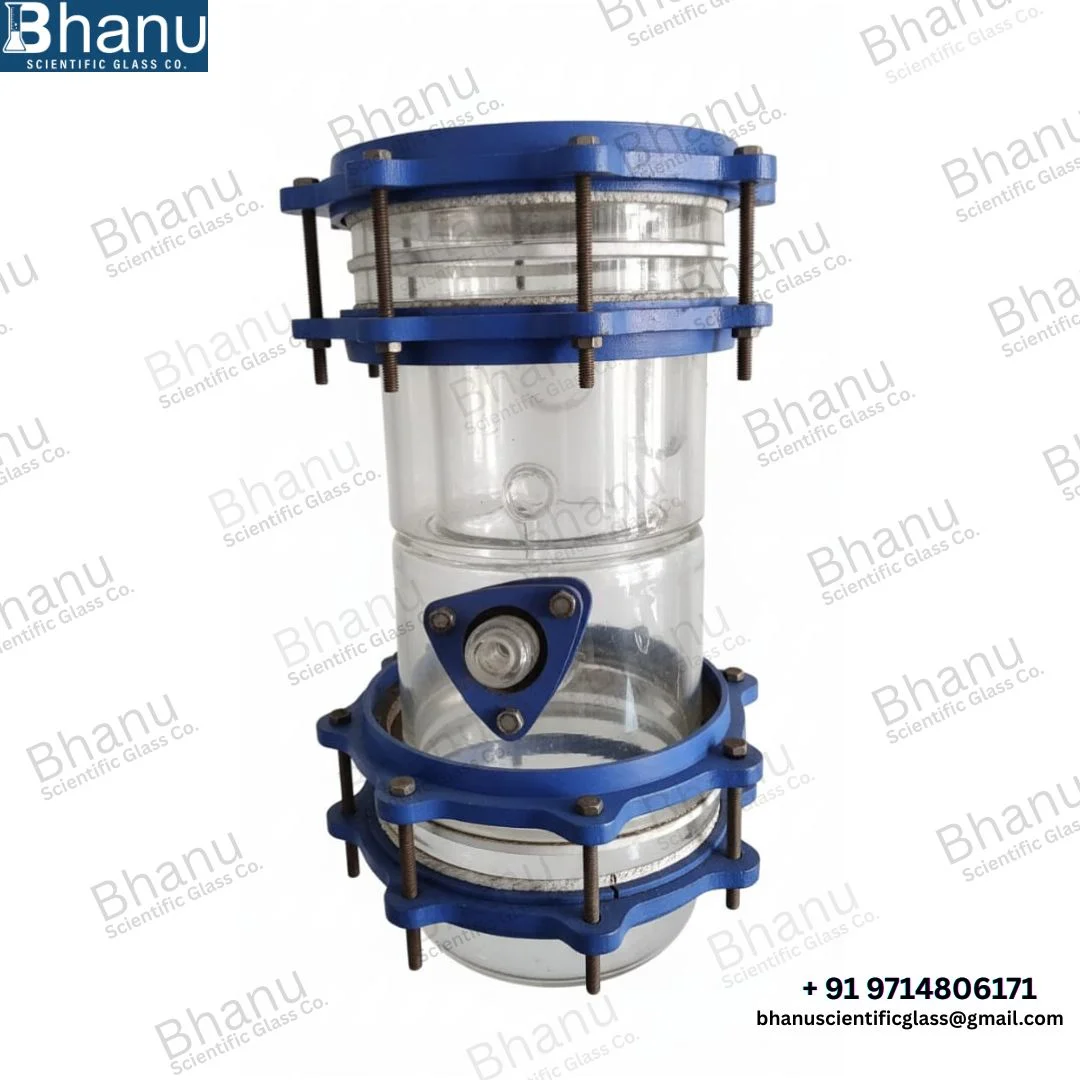

Manually Operated Reflux Dividers are precision glass components used to control the reflux ratio in distillation columns manually. These dividers allow coarse adjustment of distillate flow using a valve on the distillate outlet (DN1). Constructed from borosilicate glass 3.3, they offer excellent thermal and chemical resistance for laboratory, pilot, and industrial-scale operations.

This type of divider is simple, reliable, and maintenance-friendly, suitable for processes where automated control is not required, but accurate reflux management is necessary. Thermometer pockets (DN2) can be integrated for temperature monitoring, and liquid seals prevent vapour bypass, ensuring process integrity.

Key Features & Benefits

• Manual control for adjusting reflux ratio
• Borosilicate Glass 3.3 for thermal and chemical resistance
• Thermometer pockets for accurate temperature measurement
• Liquid seals prevent vapour leakage
• Simple, reliable, and low-maintenance design
• Flexible DN connections for integration with distillation columns

Technical Specifications

Cat. Ref.	DN	DN1	DN2	L (mm)	L1 (mm)	Free Cross Sec. cm²	Max Product L/hr
RDA3*	80	25	25	200	100	20	300
RDA4*	100	25	25	250	150	50	500
RDA6*	150	25	25	250	150	100	700
RDA9*	225	25	25	375	150	150	900
RDA12*	300	25	25	375	150	250	1100
RDA16	400	40	40	500	200	350	1300
RDA18	450	40	40	600	275	500	1500

 Items marked with an asterisk are available for fast delivery

How It Works

1. Install the divider at the top of the distillation column.
2. Adjust the manual valve on the distillate outlet (DN1) to control the reflux ratio.
3. Insert a thermometer into the DN2 pocket for temperature monitoring.
4. Optionally, use liquid seals to prevent vapour bypass.
5. Monitor the distillate flow visually through the transparent glass body.

Applications

• Chemical & Pharmaceutical Industry: distillation columns for product separation
• Research & Laboratory Setup: manual reflux adjustment
• Pilot Plants & Production Facilities: accurate distillate control
• Processes requiring thermometer monitoring: integration of DN2 pockets
• Systems needing vapour-tight operation: use of liquid seals

Why Choose Manually Operated Reflux Dividers?

• Simple yet precise manual control for reflux ratio adjustment
• Durable borosilicate glass 3.3 construction
• Flexible integration with various column diameters
• Thermometer pockets and liquid seals available
• Low-maintenance and easy to operate

FAQs

Q1: How is the reflux ratio controlled manually?
A: By adjusting the manual valve on the distillate outlet (DN1).

Q2: Can a thermometer be added?
A: Yes, a thermometer pocket (DN2) can be integrated for temperature monitoring.

Q3: Are liquid seals required?
A: They are optional but recommended to prevent vapour bypass in certain applications.

Q4: Which industries use this type?
A: Chemical, pharmaceutical, laboratory, pilot plants, and industrial distillation setups.
