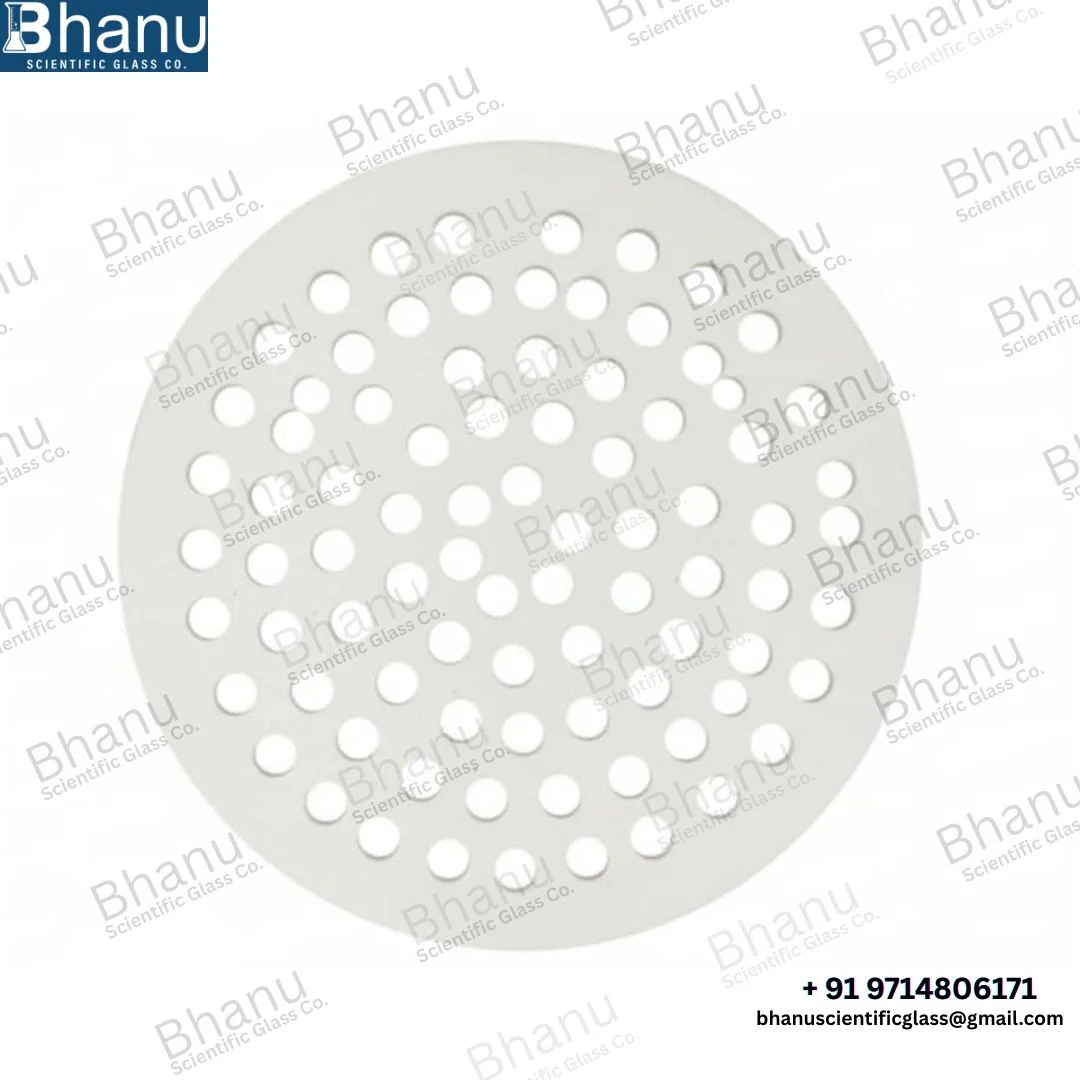

PTFE Perforated Plates are precision-machined packing retainers used in glass column systems to secure column packing materials against uplift forces caused by high vapour velocity, pressure fluctuations, or vacuum conditions. Installed typically above the packing bed, these plates play a critical role in maintaining column stability, process safety, and consistent separation efficiency.

Manufactured from high-purity PTFE, these plates offer exceptional chemical resistance, thermal stability, and long service life, making them suitable for corrosive, high-purity, and pharmaceutical-grade applications.

Working Principle

1. Packing material is supported on a packing support inside the column.
2. PTFE perforated plate is positioned above the packing layer.
3. Vapour flow passes uniformly through engineered perforations.
4. The plate prevents packing lifting or fluidization.
5. Stable hydraulic and mass transfer conditions are maintained.

Key Features & Benefits

• Prevents packing uplift due to vapour velocity
• Maintains uniform packing geometry
• Ensures consistent mass transfer efficiency
• Low pressure drop perforated design
• Excellent chemical resistance
• Non-stick surface prevents fouling
• Can be clamped without gaskets
• Suitable for vacuum and pressure operations
• Long maintenance-free service life

Material & Construction

• Material: PTFE (Polytetrafluoroethylene)
• Design: Precision perforated plate
• Surface: Smooth, chemically inert
• Compatibility: Glass columns, PTFE, metal flanges
• Installation: Between components without sealing gaskets

Technical Specifications

PTFE Perforated Plates – Standard Sizes

Cat. Ref.	DN	Outer Diameter (d)	Thickness (L)
TCP3	80	99	7
TCP4	100	132	9
TCP6	150	184	10
TCP9	225	254	12
TCP12	300	340	16

Applications

• Packed distillation columns
• Absorption and stripping towers
• Extraction columns
• Vacuum distillation systems
• Chemical processing plants
• Pharmaceutical and API manufacturing
• Laboratory and pilot-scale units

Why Choose PTFE Perforated Plates?

• Protects column packing investment
• Improves operational safety
• Enhances process reliability
• Ideal for corrosive and high-purity services
• Proven performance in industrial glass plants
