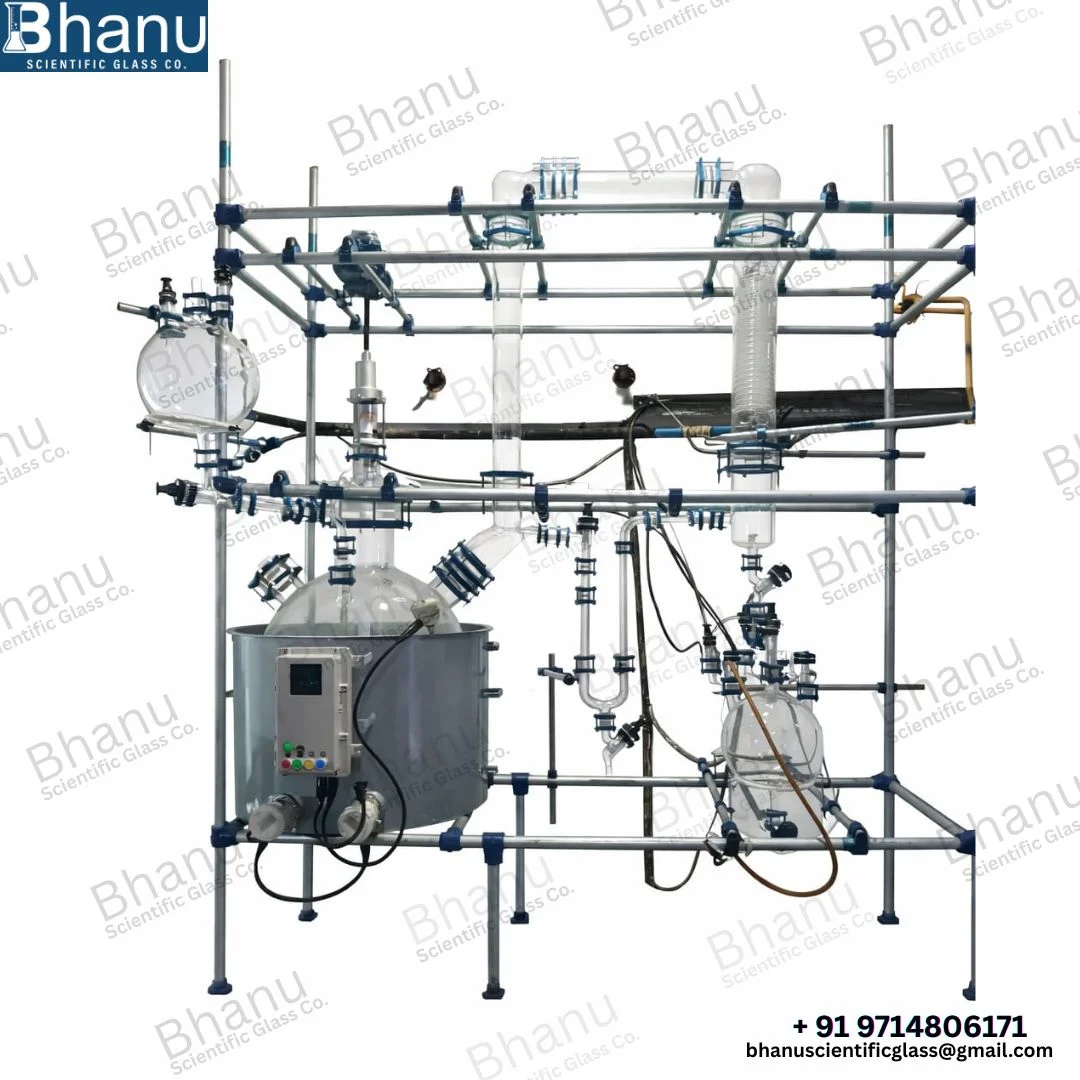

SDU Standard Distillation Unit

SDU Standard Distillation Unit

The SDU – Standard Distillation Unit is a modular industrial glass distillation system engineered for precise separation, purification, and recovery of liquid mixtures using controlled boiling and condensation principles.

Manufactured from scientific-grade Borosilicate Glass 3.3, the SDU is designed for chemical laboratories, pilot plants, R&D facilities, and small-scale production units, where process visibility, chemical compatibility, and operational safety are critical.

This unit supports atmospheric as well as vacuum distillation, making it suitable for heat-sensitive materials, solvent purification, essential oils, intermediates, and specialty chemicals.

Construction & Design Details

• All-glass contact parts ensure zero contamination
• Ground glass joints provide leak-proof and secure connections
• Uniform wall thickness reduces thermal stress
• Vertical configuration ensures efficient vapor-liquid separation
• Modular layout allows easy dismantling and cleaning

Each unit is assembled to maintain optimal vapor flow, efficient condensation, and stable liquid collection.

Working Principle

• The feed material is charged into the distillation flask
• Controlled heating causes the liquid to vaporize at its boiling point
• Vapors pass through the distillation head / column
• Vapors are cooled inside the condenser
• Condensed liquid is collected in the receiver flask
• Residual non-volatile components remain in the boiling vessel

The process ensures clean separation based on boiling point differences with excellent repeatability.

Main Components Included

•         Boiling / Distillation Flask
•         Distillation Head
•         Liebig / Coil Condenser
•         Vacuum Adapter
•         Receiving Flask
•         Support Stand & Clamps

All components are precision-fabricated for perfect alignment and sealing.

Safety & Operating Advantages

Open-to-atmosphere design prevents pressure build-up

Vacuum compatibility for low-temperature distillation

Thermal shock resistance due to Borosilicate Glass 3.3

Visual process monitoring eliminates guesswork

Stable support structure reduces breakage risk

Designed for continuous laboratory operation with maximum safety.

Performance & Process Benefits

• High separation efficiency
• Reduced solvent loss
• Low maintenance
• Easy scale-up compatibility
• Consistent batch-to-batch results

Ideal for operations where accuracy and purity are non-negotiable.

Applications

• Chemical & Pharmaceutical Laboratories
• Solvent Recovery
• Essential Oil Distillation
• Petrochemical R&D
• Fine & Specialty Chemicals
• Educational & Research Institutions

Optional Accessories & Customization

• Heating Mantle (Analog / Digital / PID Controlled)
• Fractionating Column (Packed / Vigreux)
• Vacuum Pump & Gauge Assembly
• Cold Trap System
• Multi-Receiver Assembly
• PTFE Valves & Adapters
• Custom Capacity Flasks
• Support Frames (MS / SS)

Customization available based on process, capacity, and layout requirements.

Technical Specifications (Indicative)

Parameter	Specification
Material	Borosilicate Glass 3.3
Operation Mode	Atmospheric / Vacuum
Capacity Range	1 L to 200 L
Temperature Resistance	Up to 300°C
Pressure Rating	Full Vacuum
Joint Type	Ground Glass

Frequently Asked Questions (FAQs)

Q1. Can this unit be used for vacuum distillation?
Yes, the SDU is fully compatible with vacuum operation.

Q2. Is customization available?
Yes, capacities, accessories, and configurations can be customized.

Q3. Is the unit suitable for corrosive chemicals?
Borosilicate Glass 3.3 offers excellent chemical resistance.

Q4. Can this be upgraded later?
Yes, the modular design allows easy future upgrades.

Why Choose Our SDU – Standard Distillation Unit?

• Industrial-grade build quality
• Process-proven design
• High safety standards
• Long service life
• Trusted for lab & pilot-scale operations
