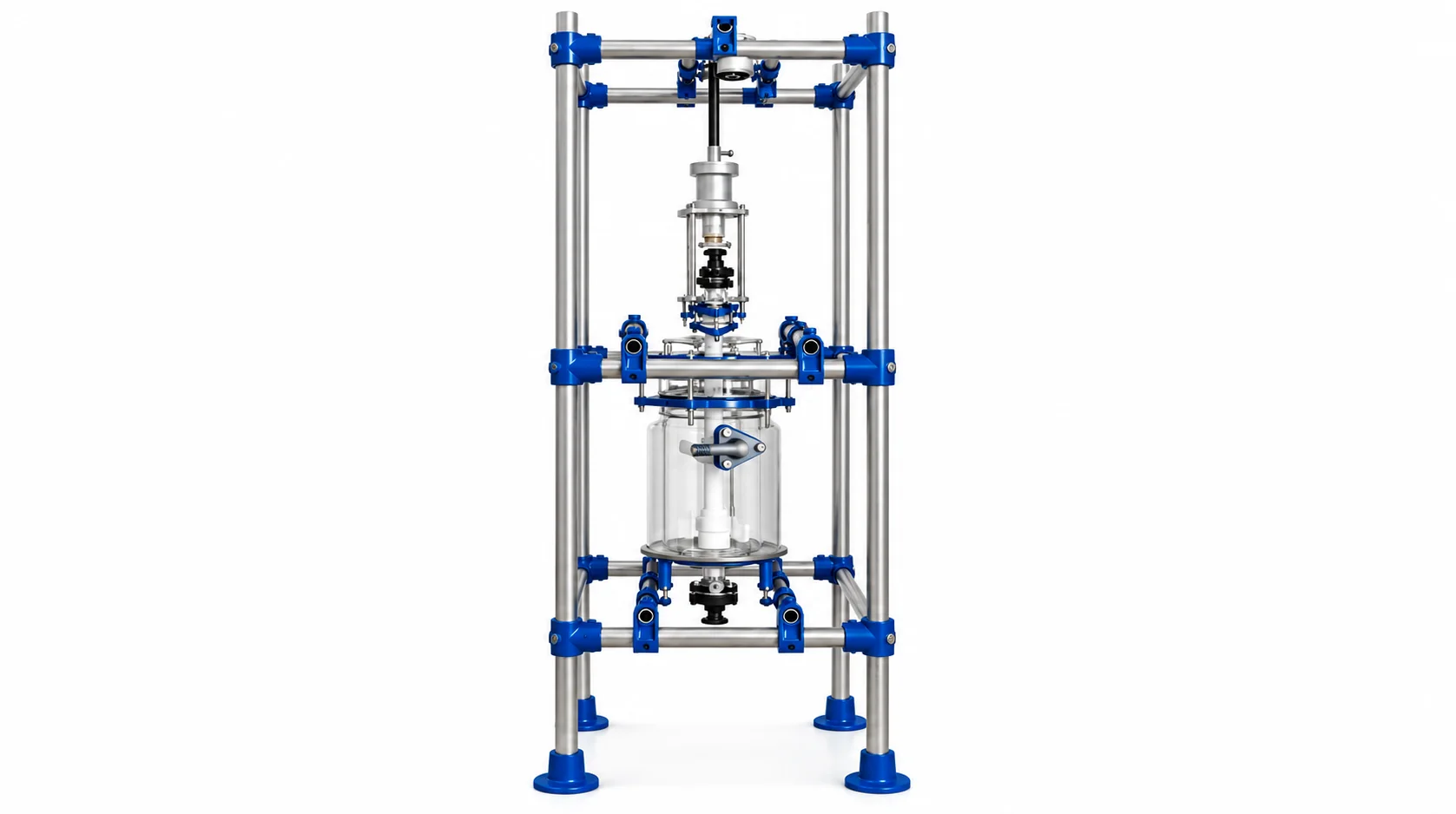

Benchtop Lab Reactor

Benchtop Lab Reactor

The Benchtop Lab Reactor is a compact, high-performance bench-scale glass reaction system designed for laboratory research, method development, and small-batch chemical synthesis. Engineered for flexibility and ease of use, this reactor is ideal for fume hood operation and constrained laboratory environments where precision and safety are critical.

Manufactured from premium Borosilicate Glass 3.3 (SCHOTT DURAN equivalent), the benchtop reactor provides excellent chemical resistance, thermal stability, and complete process visibility ????. The system supports single-wall, double-wall, or triple-wall configurations, allowing efficient heating, cooling, or insulated operation depending on process requirements.

Its modular design, compatibility with overhead stirrers, condensers, vacuum systems, and reflux assemblies, and quick-release clamping system make it a versatile solution for modern research laboratories.

Key Features & Highlights

•  Compact Benchtop Design – ideal for fume hood use
•  Borosilicate Glass 3.3 Construction
•  Wide Temperature Control Range
•  Magnetic / Overhead Stirring Capability
•  Single, Double, or Triple Wall Options
•  Flush-Bottom Discharge for Complete Drainage
•  Quick-Release Clamps for Easy Assembly
•  Highly Modular & Expandable Configuration

Construction & Materials

 Reactor Vessel

• Made from Schott Duran Borosilicate Glass 3.3
• Resistant to aggressive chemicals, solvents, and thermal shock
• High transparency for real-time observation of:
• Mixing behavior
• Phase separation
• Crystallization and reflux patterns

 Sealing & Support

• Seals: PTFE / Viton / FFKM (process-dependent)
• Support Structure: Stainless steel frame with excellent mechanical stability
• Designed for repeated assembly, cleaning, and configuration changes

Operating Parameters

•  Temperature Range: –50 °C to +180 °C
•  Pressure Range: Full vacuum to +0.5 bar positive
•  Volume Range: 100 mL to 10 L
•  Stirring Speed: Variable, 40–400 RPM

These parameters make the system suitable for vacuum reactions, reflux operations, inert-atmosphere chemistry, and temperature-sensitive processes.

Stirring & Mixing System

•  Overhead Mechanical Drive (magnetic option available for smaller volumes)
•  Variable speed control for optimized mixing
•  Interchangeable stirring elements:
• Propeller
• Anchor
• Paddle (process-dependent)
• Ensures uniform heat transfer, mass transfer, and reaction consistency

 Design & Functional Features

•  Flush-Bottom Discharge for zero product hold-up
•  Low Dead-Volume Connections for improved yields
•  Modular nozzles for:
• Sampling
• Reagent addition
• Temperature probes
• Inert gas purging
•  Quick-release clamp system for fast setup and cleaning

Optional Accessories & Configurations

•  Jacketed Heating / Cooling System
•  Temperature Sensors (PT100 / Thermocouple)
•  Vacuum Pump Integration
•  Inert Gas (Nitrogen / Argon) Purging
•  Additional ports for sampling or dosing
•  Condensers for reflux or solvent recovery

Technical Specifications

Feature	Specification
Working Volume	100 mL – 10 L
Temperature Range	–50 °C to +180 °C
Pressure Range	Full vacuum to +0.5 bar
Stirring	Overhead / Magnetic, 40–400 RPM
Glass Material	Borosilicate Glass 3.3 (Schott Duran)
Seals	PTFE / Viton / FFKM
Frame	Stainless Steel
Wall Configuration	Single / Double / Triple Wall
Discharge	Flush-bottom outlet
Modularity	High – multiple ports & accessories

Applications & Use Cases

 Laboratory & R&D

• Reaction screening and optimization
• Method development and validation
• Scale-down studies of pilot or production processes

 Chemical Synthesis

• Small-batch organic and inorganic synthesis
• Reflux and vacuum-assisted reactions
• Inert-atmosphere chemistry

 Academic & Teaching Labs

• Demonstration of reaction kinetics
• Practical chemical education
• Safe and repeatable experiments

 Pilot Testing & Small Production

• Feasibility studies
• Pre-scale-up batch production
• Integration with downstream separation units

Operational Advantages

•  Minimal footprint with maximum functionality
•  Excellent process visibility
•  Modular, future-expandable design
•  Easy cleaning and maintenance
•  Seamless integration with condensers, vacuum, and feed systems

Why Choose Bhanu Scientific Glass Co.?

•  Expertise in precision borosilicate glass equipment
•  Manual flame-worked fabrication for accuracy
•  Custom-built solutions for lab & pilot scale
•  Reliable technical guidance and after-sales support
