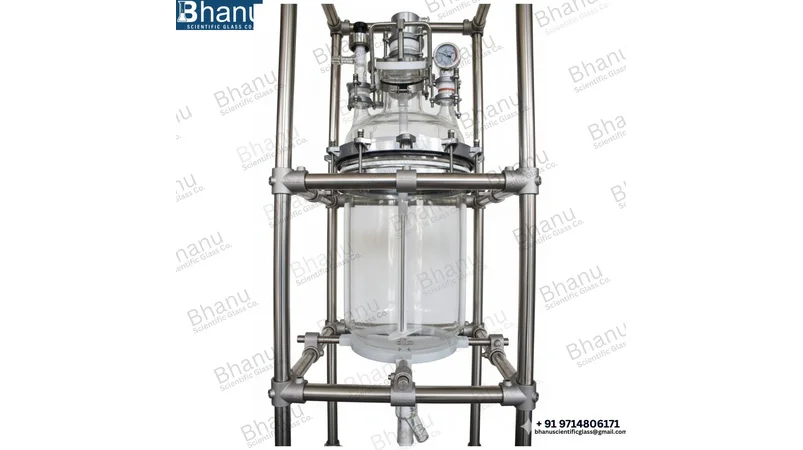

Cylindrical Vessels

Cylindrical Vessels

Our Industrial Cylindrical Vessels represent the pinnacle of Borosilicate 3.3 Glass engineering. Specifically designed for Chemical Synthesis, Pharma Processing, and Pilot Plant operations, these vessels offer superior Optical Clarity and Thermal Integrity. Whether you require a Jacketed Cylindrical Vessel for precise temperature control or a heavy-duty Storage Vessel, our products ensure a contamination-free environment for high-purity applications.

How Does It Work? Step-by-Step Process

When integrated into a Simple Distillation Unit, the process follows these critical stages:

1. Feeding: Raw chemical media is introduced via Customized Flange Ports.
2. Thermal Transfer: For Jacketed Models, heating/cooling fluids circulate to achieve a specific Reaction Temperature.
3. Vaporization: In Distillation, the Cylindrical Design allows for a uniform rise of vapors.
4. Reflux & Condensation: Vapors move through the Glass Header into the condenser.
5. Collection: The purified distillate is collected, while the Bottom Outlet Valve ensures Zero Dead-Volume drainage.

Key Features & Benefits

•  Grade 3.3 Borosilicate Glass: Highly resistant to Thermal Shock and Corrosive Acids.
• Thermal Versatility: Supports extreme temperature gradients for Exothermic Reactions.
• Modular Design: Fully compatible with Simple Distillation Units and Glass Reactors.
• Stress-Relieved: Precision-annealed to eliminate internal stress and prevent cracks.
• Smooth Internal Finish: Ensures easy cleaning and prevents Batch Cross-Contamination.

Technical Specifications

Feature	Detailed Specifications
Capacity Range	5 Liters to 500 Liters
Material Construction	ISO 3585 Borosilicate 3.3 Glass
Jacket Options	Glass Jacket, Metal Jacket, or Insulated Jacket
Operating Pressure	Full Vacuum to 0.5 Bar G (Based on Size)
Temperature Range	-50°C to +260°C
Flange Configurations	Customizable DN Sizes (Per Customer Drawing)
Corrosion Resistance	High Resistance to Acids, Halogens, & Organic Solvents

Industries We Serve

• Pharmaceuticals: API manufacturing and Crystallization.
• Chemical Research: For R&D Pilot Plants and bench-top scaling.
• Essential Oils: Extraction and Fractional Distillation.
• Food Processing: High-purity ingredient mixing and storage.

Why Choose Our Cylindrical Vessels?

We are the preferred Cylindrical Vessel Manufacturer because we focus on Safety and Customization. Unlike standard mass-produced glassware, our vessels feature Reinforced Flanges and can be equipped with Internal Baffles and Stirrers to optimize your Chemical Process. We provide Reliable Sealing Solutions to ensure your Vacuum Distillation remains leak-proof.

Application

• Simple Distillation Units for solvent recovery.
• Jacketed Reactors for temperature-controlled mixing.
• Receiver Vessels for high-vacuum systems.
• Phase Separators for liquid-liquid extraction.

Order Your Unit Today!

• In Stock – Limited Availability!
• Bulk Discounts Available – Save More on Large Orders!
• Customizable & Scalable – Tailored to your industrial needs.
• Ships Worldwide – Fast & Reliable Delivery in Export-Quality Packaging.

Contact us today to get a customized gas scrubbing or distillation solution for your industry!
