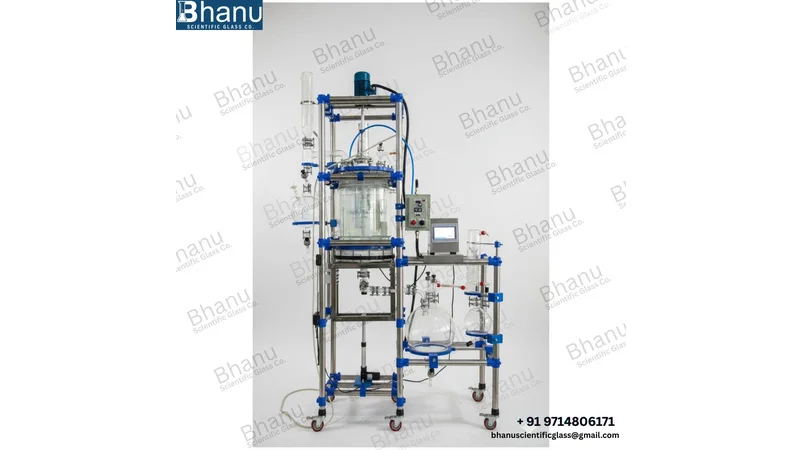

Benchtop Jacketed Nutsche Filter

Benchtop Jacketed Nutsche Filter

The Benchtop Jacketed Nutsche Filter is a compact, all-glass, closed filtration system designed for efficient solid–liquid separation, cake washing, and drying in laboratory and small pilot-scale applications. Built using borosilicate glass 3.3, the unit provides excellent chemical resistance, thermal stability, and full process visibility.

Equipped with a full jacketed vessel, flat-blade agitator, and pressure/vacuum capability, this system enables precise control of filtration and drying conditions while maintaining a contained and safe working environment. Its transparent construction allows operators to visually monitor cake formation, washing efficiency, and solvent removal in real time.

Key Features

Jacketed glass vessel for heating & cooling
Agitated filtration for improved cake washing
Closed and contained operation
Borosilicate glass construction
Compact benchtop footprint
High thermal and chemical resistance

Technical Specifications

Parameter	Specification
Vessel Sizes	1 L, 2 L (DN 100) · 3 L, 5 L (DN 150)
Filtration Area	~76.5 cm² (1–2 L) · ~175.7 cm² (3–5 L)
Operating Pressure	Full vacuum to +2 bar(g)
Jacket Pressure Rating	Up to 0.5 bar(g)
Temperature Range	–60 °C to +200 °C
Construction Material	Borosilicate glass 3.3
Sealing Materials	PTFE / FFKM
Support Structure	Stainless steel frame
Jacket Configuration	Single-wall or full double-wall jacket
Agitation Type	Flat-blade agitator
Valve Design	Low dead-volume screw or flange-type valves
Thermal Shock Resistance	ΔT ≈ 110 °C (double-wall jacket)

Additional Accessories (Optional)

•  Vacuum pump and solvent trap
• Temperature controller with PT100 sensor
• Heating/cooling circulator
• Nitrogen purge and pressure regulation kit
•  Sight glass & sampling valve
• Custom filter plates (sintered glass / PTFE)
• Mobile benchtop trolley or skid mount

Applications

•        Solid–liquid separation and cake washing
•         Laboratory-scale filtration and drying
•         Pharmaceutical and fine chemical processes
•         Small-batch crystallization and purification
•         Pilot trials for filtration & drying workflows
•         Contained handling of toxic or moisture-sensitive materials

Why Choose a Benchtop Jacketed Nutsche Filter?

Its jacketed design, agitation capability, and closed-system operation ensure reproducible, clean, and safe filtration results, making it an ideal solution for R&D labs and pilot-scale processing where precision and visibility are critical.
