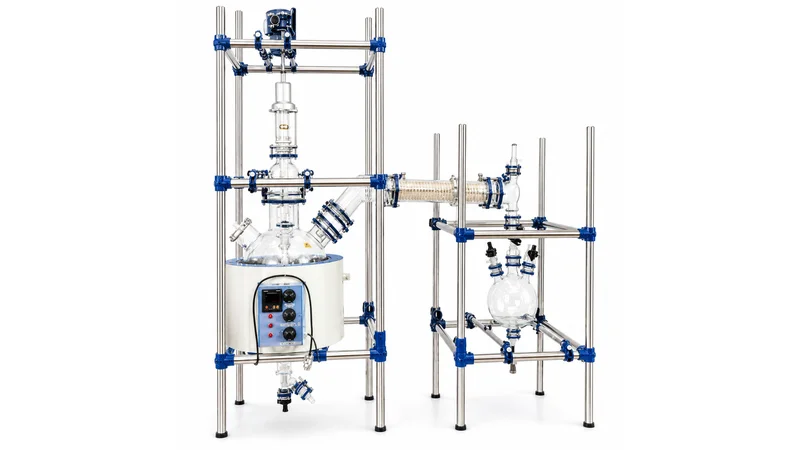

Essential Oil Distillation Unit

The Essential Oil Distillation Unit is a specialized glass distillation system designed for the extraction and purification of natural essential oils from botanical materials such as herbs, flowers, leaves, roots, seeds, and peels. These units operate primarily on the principles of steam distillation and vacuum distillation, ensuring maximum oil recovery with preserved aroma, purity, and therapeutic properties.

Manufactured using scientific-grade Borosilicate Glass 3.3, the system provides chemical inertness, thermal stability, and contamination-free processing, making it ideal for laboratories, pilot plants, research centers, perfumery units, and small-scale producers.

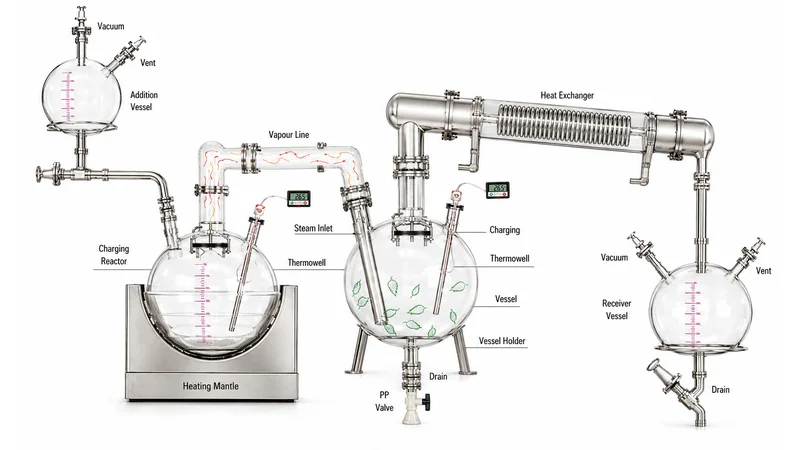

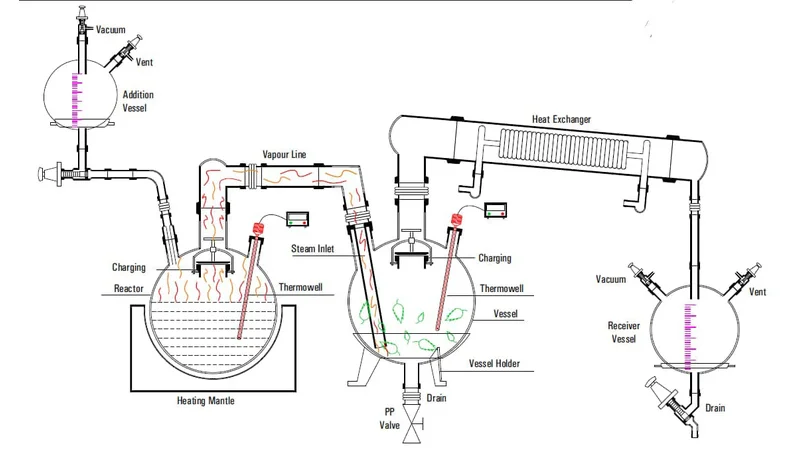

How Does an Essential Oil Distillation Unit Work?

Biomass Loading
Plant material is placed in a dedicated biomass chamber, separate from the boiling flask.

Steam Generation
Water is heated in a separate flask to generate dry steam, preventing direct contact between boiling water and biomass.

Steam Extraction
Steam passes through the plant material, rupturing oil glands and carrying volatile aromatic compounds.

Condensation
Oil-laden vapor are condensed using a high-efficiency glass condenser.

Oil–Water Separation
Condensed liquid flows into a receiver/separator, where essential oil separates naturally from hydrosol.

Safe Atmospheric Operation
The open-to-atmosphere design ensures zero pressure buildup, enhancing safety and process stability.

Key Technical Specifications

Parameter	Details
Capacity Range	250 ml – 20,000 ml
Application	Essential Oil Extraction
Material of Construction	Borosilicate Glass 3.3
Design Type	Customized
Color	Transparent
Power Source	Electric
Voltage	210 V
Frequency	50 Hz
Phase	Single Phase
Minimum Order Quantity	1 Unit

Key Features of Essential Oil Distillation Unit

• True Vertical Steam Distillation Design
• Dry Steam Extraction (No Water Contact with Biomass)
• All-Glass Construction – Zero Contamination
• Ground Glass Joints (No Rubber or Hoses)
• Open-to-Atmosphere Safety Design
• Uniform Steam Distribution
• High Purity Oil Recovery
• User-Friendly for non-chemists

Safety & Operating Advantages

• No Pressure Build-Up – Extremely Safe Operation
• Constant Distillation Temperature (~100°C at sea level)
• Prevents Overheating or Burning of Plant Material
• Visual Monitoring Through Transparent Glass
• Chemical & Thermal Shock Resistant Glass
• Ideal for Continuous & Batch Operation

Optional Accessories & Custom Configurations

• Larger Biomass Chambers
• Oil–Water Separator (Florentine Flask)
• Vacuum Distillation Attachment
• Chiller / Recirculating Cooling System
• Heating Mantle with Digital Temperature Controller
• Multiple Receiver Collection System
• Pilot-Scale & Industrial-Scale Custom Designs

Applications of Essential Oil Distillation Units

• Essential Oil Extraction (Lavender, Eucalyptus, Lemongrass, Rose, etc.)
• Aromatic & Medicinal Plant Processing
• Perfume & Fragrance Industry
• Ayurvedic & Herbal Products
• Cosmetics & Personal Care Manufacturing
• Research & Educational Laboratories
• Small-Scale & Pilot Plant Production

Industries Served

• Essential Oil Manufacturers
• Herbal & Ayurvedic Industry
• Cosmetics & Personal Care Brands
• Fragrance & Flavor Industry
• Research Institutions
• Startups & Home-Scale Producers

Frequently Asked Questions (FAQ)

Q1. What type of distillation is used in this unit?
This unit primarily uses steam distillation and can be adapted for vacuum distillation.

Q2. Is it safe for beginners or non-chemists?
Yes. The open-to-atmosphere design and simple operation make it extremely safe.

Q3. Will water mix with the essential oil?
No. The system ensures dry steam extraction, and oil is separated naturally in the receiver.

Q4. Can this unit be customized for higher capacity?
Yes. Units can be designed from lab scale to pilot and industrial scale.

Why Choose Our Essential Oil Distillation Units?

• High-Purity, Natural Oil Recovery
• Contamination-Free All-Glass Design
• Safe, Efficient & Easy to Operate
• Custom Capacities & Configurations Available
• Proven Performance in Herbal & Aroma Industries
