Continuous Distillation System

Continuous Distillation System

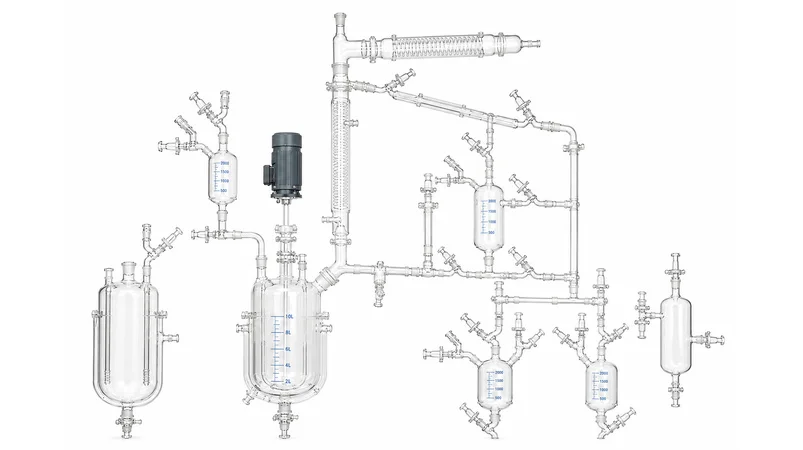

The Continuous Distillation System is an advanced industrial glass process system engineered for high-volume, uninterrupted separation of liquid mixtures under steady-state operating conditions. Unlike batch distillation, this system allows continuous feed input and simultaneous withdrawal of top and bottom products, ensuring higher throughput, consistent product quality, and superior energy efficiency.

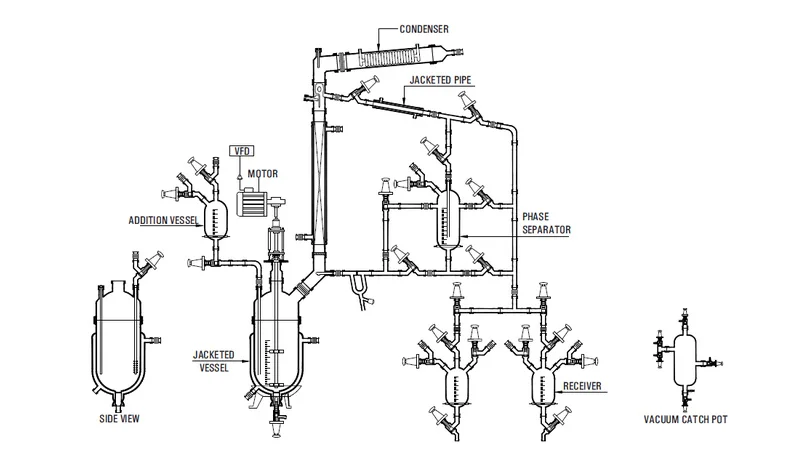

Constructed using Borosilicate Glass 3.3, the system integrates a reboiler, fractionating column with rectification and stripping sections, reflux divider, condensers, and receiver assemblies into a single, optimized setup. It is ideal for continuous chemical processing, solvent recovery, and multicomponent separation applications under atmospheric pressure or vacuum.

How Does the Continuous Distillation System Work? (Step-by-Step Process)

Continuous Feed Introduction
The liquid feed mixture is continuously introduced into the distillation column at a controlled flow rate.

Reboiler Heating
The reboiler supplies consistent thermal energy, generating vapors from the feed mixture.

Rectification & Stripping Sections

• Rectification Section (Top) enriches lighter, more volatile components
• Stripping Section (Bottom) removes heavier components

Vapor–Liquid Equilibrium
Mass transfer occurs across trays or packing, enabling efficient component separation based on relative volatility.

Condensation & Reflux Control
Overhead vapors are condensed and split using a reflux divider, optimizing separation efficiency.

Continuous Product Withdrawal

• Top product withdrawn continuously
• Bottom product withdrawn simultaneously

Multicomponent Separation (If Required)
For n-component mixtures, n–1 fractionating columns are arranged in series to obtain each component in relatively pure form.

Key Features & Benefits of Continuous Distillation System

• Uninterrupted Continuous Operation
• High Throughput & Industrial Scalability
• Superior Separation Efficiency
• Reduced Batch-to-Batch Variability
• Lower Operating & Energy Costs
• Optimized for Multicomponent Systems
• Borosilicate Glass 3.3 – Corrosion & Thermal Resistant
• Vacuum & Atmospheric Operation Capability

Safety & Operating Advantages

• Explosion-safe all-glass construction
• No metallic contamination in product stream
• Stable steady-state operation reduces thermal shocks
• Controlled reflux and feed rates enhance operational safety
• Suitable for volatile & hazardous solvents
• Easy inspection due to transparent glass design

Optional Accessories & System Enhancements

• Additional Fractionating Columns (for multicomponent separation)
• Vacuum Pump & Vacuum Control System
• Automated Feed & Product Withdrawal Control
• Chillers & Cooling Circulators
• Digital Temperature, Pressure & Flow Sensors
• Customized Column Packing / Tray Design
• Integration with Solvent Recovery or Scrubbing Systems

Technical Highlights – Continuous Distillation System

• Operation Mode: Continuous
• Material of Construction: Borosilicate Glass 3.3
• Separation Method: Fractional Distillation
• Sections: Rectification & Stripping
• Pressure Range: Atmospheric to Full Vacuum
• Scalability: Single-column to Multi-column Configurations

(Detailed specifications available on request as per process requirements)

Applications of Continuous Distillation System

• Bulk Solvent Separation & Recovery
• Petrochemical Intermediates Processing
• Fine & Specialty Chemicals Manufacturing
• Pharmaceutical & API Production
• Multicomponent Mixture Separation
• Continuous Pilot Plant Operations

Industries We Serve

• Chemical & Petrochemical Industries
• Pharmaceutical & API Manufacturers
• Specialty Chemical Producers
• Research & Pilot Plant Facilities
• Industrial Solvent Recycling Units

Why Choose Our Continuous Distillation System?

• Proven Industrial Design & Engineering
• Custom-Built for Process-Specific Requirements
• High Operational Reliability
• Energy-Efficient Continuous Processing
• Global Supply & Technical Support

Frequently Asked Questions (FAQ)

Q1. What is the main advantage of continuous distillation over batch distillation?
Continuous distillation offers higher productivity, stable product quality, and reduced downtime.

Q2. Can multicomponent mixtures be separated?
Yes. For an n-component mixture, n–1 fractionating columns are used for complete separation.

Q3. Is vacuum operation possible?
Yes, the system supports atmospheric and full vacuum operation.

Q4. Can the system be customized?
Absolutely. Column height, number of stages, accessories, and automation can be customized.
