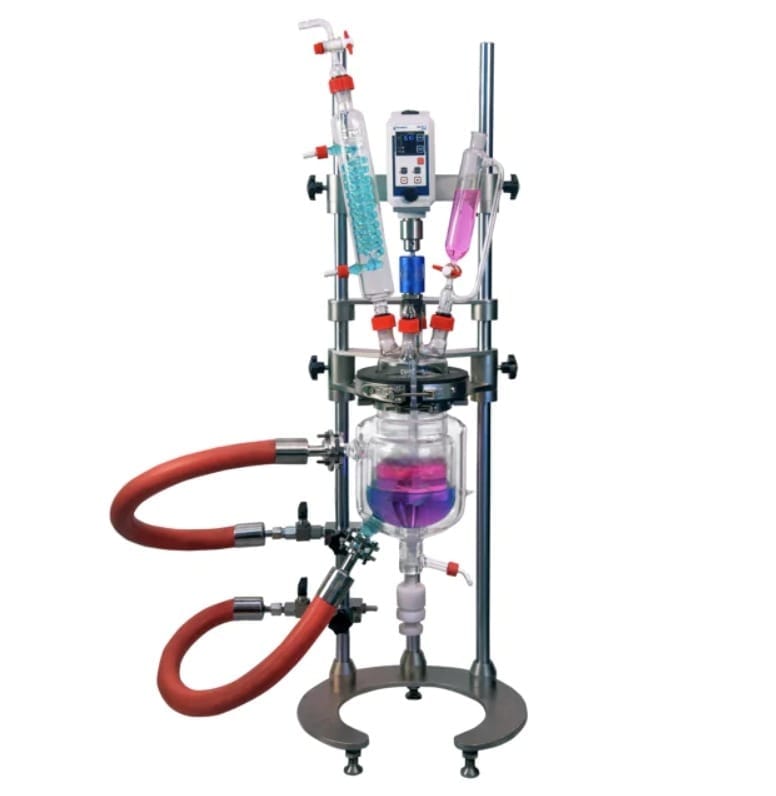

LAB GLASS REACTOR – High-Performance Chemical & Pharmaceutical Reactor
Product Overview of Best-In-Class LAB GLASS REACTOR for Research & Industrial Applications
Our Lab Glass Reactor is a versatile, high-quality, and precision-engineered reaction system designed for chemical synthesis, pharmaceutical processing, and laboratory research. Built with premium borosilicate glass, it ensures high chemical resistance, superior thermal stability (-50°C to 180°C), and full vacuum operation for reliable, scalable, and reproducible reactions.

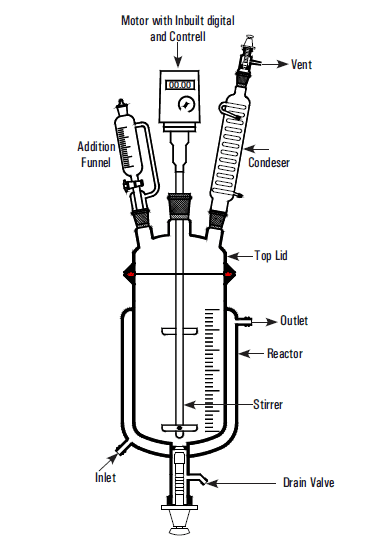

🔬 How Does the LAB GLASS REACTOR Work? Step-by-Step Process
1️⃣ Reactant Addition :
Using the addition funnel, controlled reactant input ensures precise chemical reactions.
2️⃣ Mixing & Agitation
The overhead stirrer with variable speed (40 – 400 RPM) provides efficient mixing.
3️⃣ Temperature Control
Integrated heating/cooling system maintains precise temperature conditions.
4️⃣ Condensation & Venting
The condenser efficiently recycles solvents and maintains pressure balance.
5️⃣ Final Product Collection
The flush bottom drain valve allows easy discharge with minimal residue.
📌 Key Features & Benefits of Our LAB GLASS REACTOR
✅ Premium Borosilicate Glass:
High resistance to chemicals and temperature variations.
✅ Wide Operating Range:
-50°C to 180°C, full vacuum to 0.5 bar pressure.
✅ Versatile Stirring Options:
Mechanical seal/stuffing box/magnetic seal configurations.
✅ Modular & Scalable:
Available in Single Wall, Double Wall, and Triple Wall configurations.
✅ Quick Installation:
Skid-mounted design with quick-release clamps.
✅ Customizable:
Compatible with vacuum pumps, PH probes, pressure gauges, chiller units, and circulators.
✅ Measuring Markings:
Volume indicators for precise reaction monitoring.
✅ Flush Bottom Valve:
Ensures minimum dead volume and easy material collection.
📊 Technical Specifications of LAB GLASS REACTOR
| Capacity (L) | Motor Speed (RPM) | Addition Funnel (ml) | Height (mm) |
|---|---|---|---|
| 1 L | 40 - 400 | 250 | 900 |
| 2 L | 40 - 400 | 500 | 1350 |
| 3 L | 40 - 400 | 500 | 1450 |
| 5 L | 40 - 400 | 1000 | 1450 |
| 10 L | 40 - 400 | 2000 | 1700 |
🏭 Industries We Serve with Our LAB GLASS REACTOR
🔹 Pharmaceuticals – Drug formulation, API production.
🔹 Chemical Processing – Synthesis, distillation, crystallization.
🔹 Biotechnology – Fermentation, bioreactor processes.
🔹 Petrochemical & Polymer Research – Resin production, polymerization.
🔹 Academic & R&D Labs – Universities, research centers, pilot plants.
🔥 Why Choose Our LAB GLASS REACTOR?
✔ Made from Best Quality Glass Material for maximum durability.
✔ High-Efficiency Stirring System with built-in speed control & display.
✔ Vacuum Compatible & Leak-Proof Design for high-performance reactions.
✔ Fully Customizable with Add-On Accessories – Heating/Cooling systems, PH probes, vacuum pumps, and more.
✔ Bulk Discounts & Worldwide Shipping – Order in bulk and save more!
✔ Fast Delivery & After-Sales Support – Reliable technical assistance available.
⚙ Applications of LAB GLASS REACTOR
🧪 Organic Synthesis
💊 API Production & Drug Formulation
🌱 Essential Oil & Herbal Extraction
🛢 Polymerization & Resin Manufacturing
🧬 Biotechnology & Fermentation Studies
🏭 Pilot Plant Testing & Scale-Up Research
🛒 Order Your Industrial unit Today!
🚨 In Stock – Limited Availability!
💰 Bulk Discounts Available – Save More on Large Orders!
🛠 Customizable & Scalable
🌍 Ships Worldwide – Fast & Reliable Delivery!
📩 Contact us today to get a customized unit for your industry!
📞 Call Now: +91_9714806171
📧 Email Us: bhanuscientificglass@gmail.com
🌐 Visit Our Website: bhanuscientificglass.com
