Premium Glass Distillation Apparatus – High-Performance Laboratory
Distillation Equipment
Product Overview – Glass Distillation Apparatus
Introducing our High-Precision Glass Distillation Apparatus, crafted with borosilicate glass and PTFE components for chemical resistance, durability, and thermal stability. Our Glass Distillation Units are essential for liquid purification, separation of volatile compounds, and essential oil extraction across a wide range of industries like chemical laboratories, pharmaceuticals, petrochemicals, and research institutions.
Engineered to deliver maximum efficiency, safe operation, and accurate results, our Glass Distillation Systems are available in multiple capacities including 20L, 50L, 100L, 200L, and 300L.

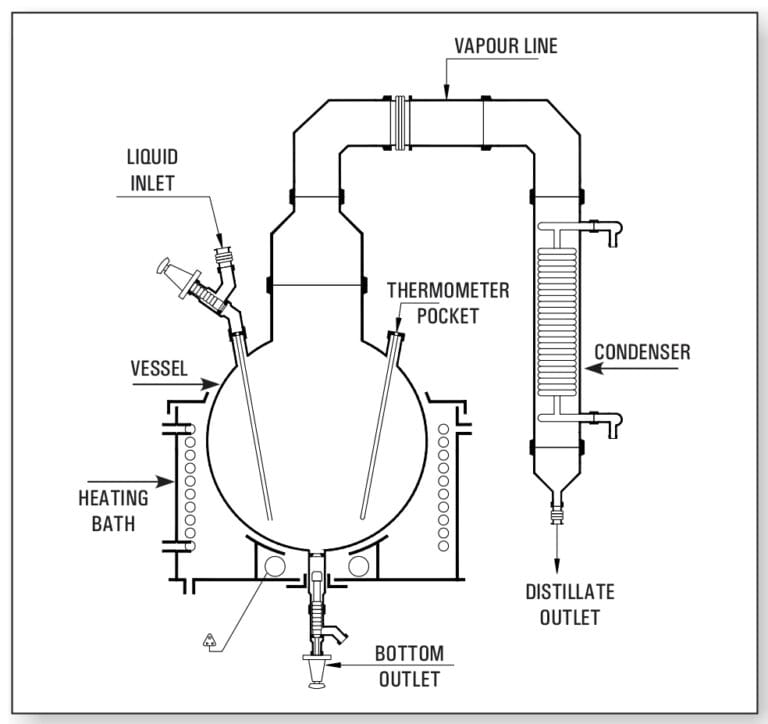

🔬 How Does the Glass Distillation Apparatus Work? – Step-by-Step Process
- Heating the Mixture: Liquid mixture is heated in a boiling flask until it vaporizes.
- Vapor Transfer: The vapor travels through a vapor line into the condenser.
- Condensation: Vapors are cooled inside the condenser, converting them back to liquid form.
- Collection: The condensed liquid is collected in a receiving flask or receiver vessel.
- Optional Drainage: Receiver vessels with drain valves make condensate removal quick and easy.
Simple Operation, Accurate Separation, High Purity Yield
Simple Operation, 📌 Key Features & Benefits of Our Glass Distillation Apparatus
- High-Grade Borosilicate Glass Construction – Thermal shock resistance and chemical durability.
- PTFE Wetted Parts – Maximum compatibility with aggressive chemicals.
- Customizable Configurations – Available in various sizes: 20L, 50L, 100L, 200L, 300L.
- Efficient Vapour Condensation – Integrated high-efficiency condensers.
- Vacuum & Pressure Compatibility – For advanced distillation processes.
- Transparent Assembly – Allows real-time visual monitoring of the distillation.
- Compact, Scalable Designs – From laboratory scale to industrial scale.
📊 Technical Specifications – Glass Distillation Apparatus
Reactor Capacity | Heating Bath (KW) | Vapor Line (DN) | Condenser Area (M²) |
20 L | 4.5 KW | 80 DN | 0.35 M² |
50 L | 6.0 KW | 100 DN | 0.50 M² |
100 L | 9.0 KW | 150 DN | 1.50 M² |
200 L | 12.0 KW | 150 DN | 1.50 M² |
300 L | 16.0 KW | 225 DN | 2.50 M² |
⚙️ Material of Construction: Borosilicate Glass 3.3 & PTFE
⚡ Operating Pressure: Atmospheric to Full Vacuum
🌡️ Operating Temperature: Up to 250°C
🏭 Industries We Serve
- Pharmaceutical Manufacturing
- Chemical Research Laboratories
- Essential Oil Extraction Units
- Food & Beverage Processing
- Petroleum Refineries
- Water Purification Plants
- Academic Institutions & R&D Centers
🔥 Why Choose Our Glass Distillation Apparatus?
- ✔ Superior Material Quality – 100% borosilicate glass & PTFE for unmatched durability.
- ✔ Exceptional Precision – Perfect for critical laboratory and industrial applications.
- ✔ Global Standards Compliance – Built according to ISO and ASTM standards.
- ✔ Customizable Solutions – Tailor-made setups for specific process requirements.
- ✔ Competitive Pricing – Best-in-class pricing for premium glass distillation systems.
- ✔ Excellent Support – From consultation to after-sales service, we are your trusted partner.
⚙ Applications of Glass Distillation Apparatus
- Separation of Volatile Chemicals
- Purification of Solvents and Reagents
- Extraction of Essential Oils and Aromatic Compounds
- Production of High-Purity Water
- Organic and Inorganic Compound Isolation
- Educational Demonstrations and Research Experiments
