Premium Glass Solvent Extraction Unit | Semi-Batch Operation | Industrial Grade
Product Overview: High-Performance Extraction Unit for Solvent Extraction Applications
Introducing our state-of-the-art Glass Solvent Extraction Unit, engineered for precise, efficient, and continuous extraction of soluble constituents from solid mixtures. Designed for semi-batch operations under atmospheric pressure, this extraction system ensures maximum yield, consistent results, and operational reliability for a wide range of industries.
Built with high-quality borosilicate glass and chemical-resistant components, our Solvent Extraction Unit provides superior performance for laboratory, pilot plant, and industrial applications.

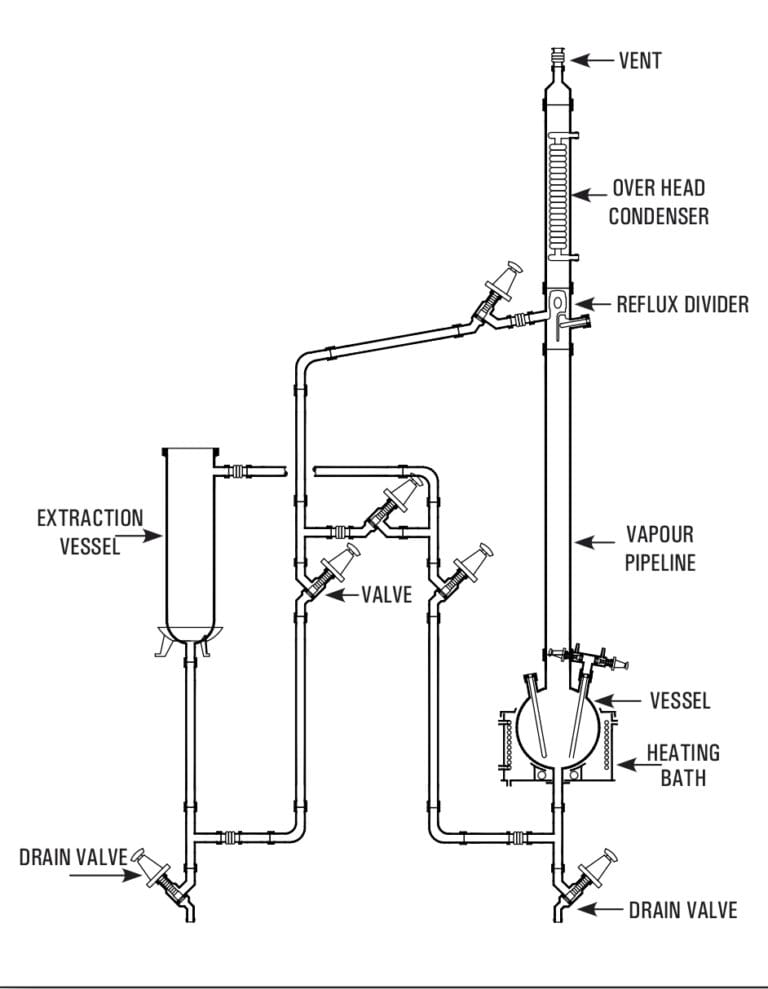

🔬 How Does the Glass Solvent Extraction Unit Work? | Step-by-Step Process
- Loading Solid: The material to be extracted is placed inside a glass fiber bag and loaded into the extraction vessel.
- Heating & Evaporation: Solvent from the heating bath in the vessel is evaporated and sent upwards through the system.
- Condensation & Circulation: Vapors pass through the overhead condenser, where they condense and flow via the reflux divider.
- Extraction: The condensed solvent continuously washes the solid material, extracting solutes into the solvent.
- Collection: When the desired concentration is achieved, the solution is drained through the drain valve for further processing.
- Cycle Restart: Fresh solid and solvent can be recharged to restart the cycle, ensuring continuous semi-batch operation.
📌 Key Features & Benefits of Our Glass Solvent Extraction Unit
- High-Efficiency Extraction for maximum solute recovery.
- Durable Borosilicate Glass Construction ensures chemical resistance and longevity.
- Precise Reflux Control through an adjustable reflux divider.
- User-Friendly Operation with easy-to-use valves and drain systems.
- Safe, Reliable Heating System with robust heating bath.
- Customizable Vessel Sizes (10L, 20L, 50L) based on your process needs.
- Perfect for Semi-Batch Extraction under atmospheric pressure.
- Fast Setup & Easy Maintenance for minimal downtime.
📊 Technical Specifications of Glass Solvent Extraction Units
Reactor Capacity | Heating Bath KW | Vapour Line | Extraction Vessel | Condenser Area (m²) |
10 Liters | 3.00 KW | 40mm x 1m | 10 Liters | 0.35 |
20 Liters | 4.50 KW | 50mm x 1m | 20 Liters | 0.50 |
50 Liters | 6.00 KW | 80mm x 1m | 50 Liters | 1.50 |
✅ Operating Pressure: Atmospheric
✅ Design Type: Semi-batch
🏭 Industries We Serve
- Pharmaceuticals & Biotechnology
- Chemical & Petrochemical Processing
- Food & Beverage Extraction
- Perfume and Essential Oil Production
- Herbal and Plant Extract Industry
- Research Laboratories & Pilot Plants
🔥 Why Choose Our Premium Extraction Units?
- Proven Expertise in manufacturing high-precision extraction equipment.
- Superior Glass Quality for excellent chemical compatibility.
- Customization Available as per client-specific requirements.
- Competitive Pricing without compromising on quality.
- ISO Certified Manufacturing
- Trusted by Leading Industries Worldwide.
⚙ Applications of the Solvent Extraction Unit
- Solvent Extraction of Active Ingredients
- Herbal Extraction
- Essential Oil Recovery
- Chemical Compound Isolation
- Laboratory Research Experiments
- Pilot Scale Trials
🛒 Order Your Glass Solvent Extraction Unit Today!
🚨 In Stock – Limited Availability!
💰 Bulk Discounts Available – Save More on Large Orders!
🛠 Customizable & Scalable
🌍 Ships Worldwide – Fast & Reliable Delivery!
📩 Contact us today to get a customized unit for your industry!
📞 Call Now: +91_9714806171
📧 Email Us: bhanuscientificglass@gmail.com
🌐 Visit Our Website: bhanuscientificglass.com
