Premium Distillation Glassware for Laboratory & Industrial Applications
Product Overview – Distillation Glassware
Our Distillation Glassware is expertly designed for high-efficiency distillation, reflux reactions, and sub-cooling processes. Built with borosilicate glass 3.3, it ensures chemical resistance, thermal stability, and superior durability. The system includes a reaction vessel, addition vessel, motorized stirrer, reflux condenser, and a receiver with a drain valve, providing a complete, ready-to-use distillation setup. Perfect for operations under atmospheric or full vacuum conditions.

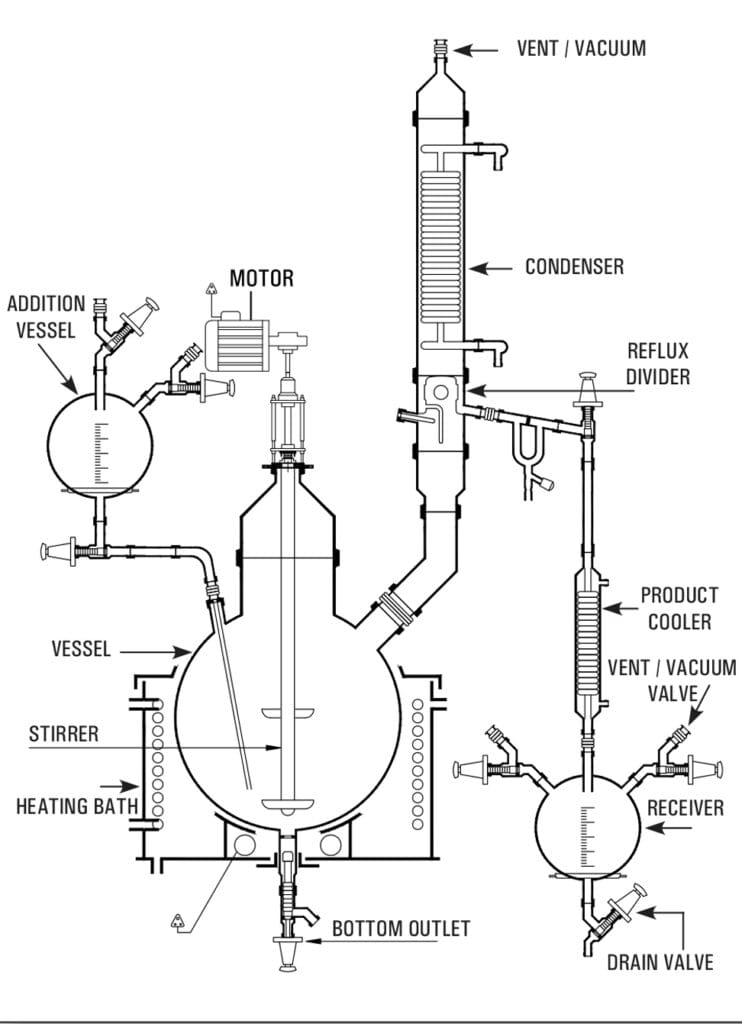

🔬 How Distillation Glassware Works – Step-by-Step Process
- Addition Vessel introduces reactants into the reaction vessel under controlled stirring.
- The Heating Bath warms the contents to the desired temperature.
- Vapors rise through the vapor line into the Condenser where they cool.
- Reflux Divider manages returning condensed vapor for efficient distillation.
- Sub-cooled product flows through the Product Cooler.
- Final purified product is collected into the Receiver, fitted with a Drain Valve for easy discharge.
📌 Key Features & Benefits
- High-Quality Borosilicate Glass (3.3) – Excellent chemical and heat resistance
- Motor-Driven Stirring System – Uniform mixing and reaction control
- Efficient Condensation – Using precision-designed condensers and coolers
- Vacuum and Atmospheric Operation – Versatility for various processes
- Customizable Addition Vessel Sizes – Flexibility for multiple reactions
- Secure Sealing Technology – Leak-proof operations under vacuum
- Easy Collection System – Receiver with integrated drain valve
- Compact Design – Saves laboratory space
- Low Maintenance – Built for long-term durability
📊 Technical Specifications – Distillation Glassware
Reactor Capacity | Heating Bath (KW) | Addition Vessel Size | Vapor Line (DN) | Condenser Area (M²) | Cooler Area (M²) | Receiver Size |
20 Liters | 4.5 KW | 2 L | 80 DN | 0.35 M² | 0.10 M² | 5 L |
50 Liters | 6.0 KW | 5 L | 100 DN | 0.50 M² | 0.20 M² | 10 L |
100 Liters | 9.0 KW | 10 L | 150 DN | 1.50 M² | 0.35 M² | 20 L |
200 Liters | 12.0 KW | 20 L | 150 DN | 1.50 M² | 0.35 M² | 20 L |
300 Liters | 16.0 KW | 20 L | 225 DN | 2.50 M² | 0.50 M² | 20 L |
⚙ Material of Construction: Borosilicate Glass, PTFE
🌡️ Operating Temperature: Up to 250°C
⚡ Pressure Handling: Full Vacuum to Atmospheric
🏭 Industries We Serve
- Pharmaceutical Manufacturing
- Chemical & Petrochemical Processing
- Research Laboratories
- Biotechnology Companies
- Essential Oil Extraction
- Water Purification Plants
- Educational Institutions
🔥 Why Choose Our Distillation Glassware?
✅ Superior Quality Glass – Precision manufactured for strength and safety
✅ High Efficiency Design – Optimized for better yield and faster operations
✅ Customizable Units – Tailor-made to suit your process needs
✅ Reliable After-Sales Support – Installation, servicing, and upgrades
✅ Trusted by Top Brands – 1000+ satisfied clients worldwide
⚙ Application of Distillation Glassware
- Solvent Recovery and Purification
- Organic Synthesis and Reaction Monitoring
- Essential Oil & Natural Extract Distillation
- Water and Liquid Separation
- Research & Development Projects
🛒 Order Your Industrial unit Today!
🚨 In Stock – Limited Availability!
💰 Bulk Discounts Available – Save More on Large Orders!
🛠 Customizable & Scalable
🌍 Ships Worldwide – Fast & Reliable Delivery!
📩 Contact us today to get a customized unit for your industry!
