Premium Industrial Jacketed Glass Reactor | Chemical & Pharmaceutical Grade Reactors
🌟 Product Overview: High-Performance Jacketed Glass Reactor for Precision Chemical Processing
Our Jacketed Glass Reactor is a cutting-edge solution for controlled chemical reactions, mixing, distillation, and extraction processes. Built with premium borosilicate glass and robust engineering, this reactor allows precise temperature control, safe operation, and exceptional chemical resistance — essential for laboratory research, pilot plants, and full-scale production.
Whether you’re synthesizing pharmaceutical compounds, specialty chemicals, or organic intermediates, our Industrial Jacketed Glass Reactor delivers consistent, reproducible results while maximizing safety and operational efficiency.
Below options are available for Jacketed Glass Reactor Unit:
- Stirrer Drive: Non-Flameproof or Flameproof Motor, 192 RPM with speed regulator.
- Stirrer material of construction: Glass or PTFE Lined.
- Stirrer shape: Glass Impeller Stirrer with PTFE Blades, Vortex Stirrer, propeller stirrer & anchor stirrer.
- Stirring Assembly: Stirring Assembly with bellow seal or with mechanical seal.
- Supporting Structure: Carbon Steel, Epoxy coated Carbon Steel, Stainless Steel 304 & Stainless Steel 316. All structure are available in Trolley mounted form.
- Closing Valve: Drain Valve or Flush Bottom Outlet Valve.

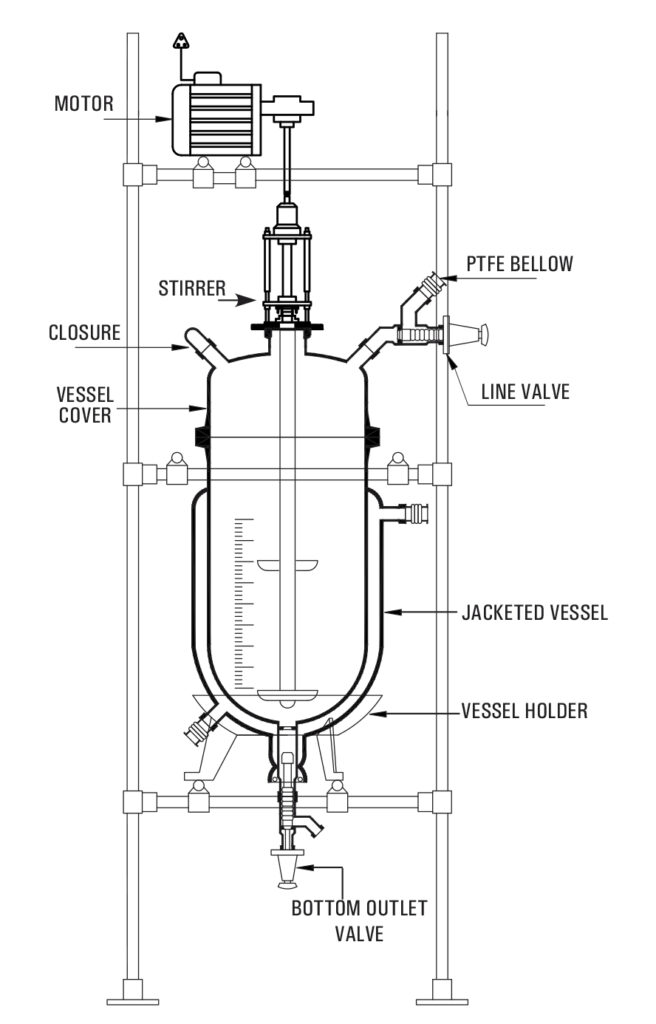

🔬 How Does the Jacketed Glass Reactor Work? | Step-by-Step Process
- Material Loading: Reactants are loaded into the main vessel through the vessel cover.
- Sealed Stirring: A motorized stirrer ensures uniform mixing of reactants. Stirrer options include glass impeller, PTFE-lined shaft, anchor, vortex, or propeller designs.
- Precise Temperature Control: The jacketed vessel allows circulating fluid (hot or cold) to maintain desired reaction temperatures.
- Process Flow Management: PTFE bellows and line valves manage inert gases or reactant feeds without contamination.
- Monitoring & Adjustments: Operators can observe and adjust parameters during the reaction through graduated markings.
- Drain & Discharge: After completion, products are drained safely via the bottom outlet valve (flush or drain design).
📌 Key Features & Benefits of Our Jacketed Glass Reactor
- High-Quality Borosilicate Glass (3.3) for maximum thermal and chemical resistance.
- Precise Thermal Control via double-jacket design for heating or cooling operations.
- Stirring Customization: Flameproof or Non-flameproof motors available, adjustable 192 RPM with speed regulators.
- Flexible Stirrer Designs: Glass impeller, PTFE blades, anchor, vortex, or propeller types.
- Superior Sealing Options: Mechanical seal or bellow seal for leak-proof operation.
- Heavy-Duty Support Structure: Options in Epoxy-coated Carbon Steel, SS304, SS316, Trolley-mounted
- Safe & Easy Draining: Bottom outlet valves — Drain Valve or Flush Bottom.
- Customizable Volume Options: 5L to 50L with or without graduation marks.
🏭 Industries We Serve
- Pharmaceutical & Biotechnology
- Chemical Manufacturing
- Petrochemical & Refinery Industries
- Food Processing & Flavor Industries
- Herbal & Essential Oil Extraction
- Cosmetics & Personal Care Production
- Research Laboratories & R&D Centers
🔥 Why Choose Our Jacketed Glass Reactors?
- ISO Certified Manufacturing
- Best-in-Class Borosilicate Glass
- Full Customization Options
- Designed for Efficiency, Durability, and Safety.
- Competitive Pricing to match global quality.
- Proven Industry Expertise and client trust worldwide.
⚙ Applications of Jacketed Glass Reactor
- Chemical Synthesis and Reactions
- Polymerization
- Extraction and Purification Processes
- Distillation and Crystallization
- Heat Exchange Operations
- Pilot Plant Trials
- Scaling-Up Research Projects
