Angle Valve
Angel valve have outlet at perpendicular angle to the inlet nozzle. The angle valves are available in 15 DN to 50 DN inlet nozzles angle as shown below. Angle valve is used widely by API & R&D Lab throughout the World.
| Cat.Ref. | DN | DN1 | d | L | H | Degree |
| PV0.7 | 15 | 15 | 10 | 50 | 85 | 90 |
| PVE1 | 25 | 25 | 18 | 100 | 175 | 90 |
| PVE1/80 | 25 | 25 | 18 | 100 | 175 | 80 |
| PV1.5 | 40 | 40 | 26 | 150 | 200 | 90 |
| PV2 | 50 | 50 | 38 | 150 | 220 | 90 |
Spindles are made of PTFE.

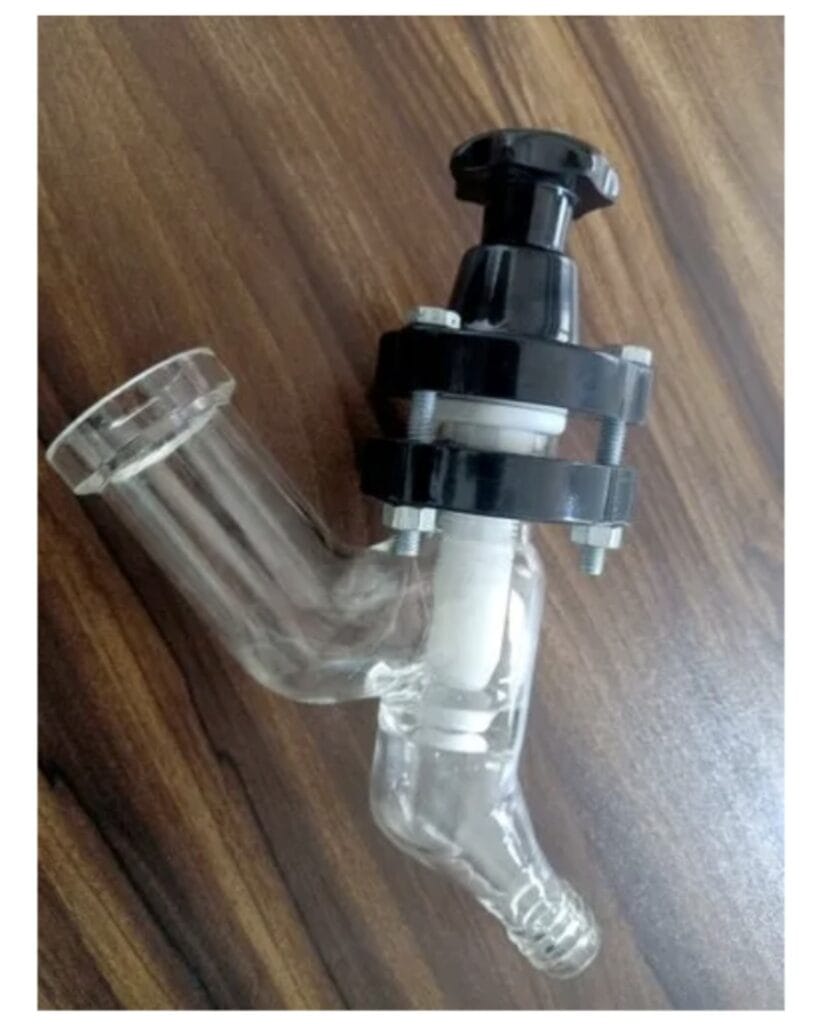

Drain Valve
Drain Valve is available with us in several designs and other specifications to meet the varied applications of clients.
Drain Valve is well-suited for the release of excess fluids from the storage containers to maintain the level of liquids.
Furthermore, clients can purchase this Glass Drain Valve from us at cost-effective prices. Drain Valve is available from 15-50 DN in size. Bigger size drain valve also available on request.
| Cat.Ref. | DN | DN1 | d | L | H | d |
| PV0.7 | 15 | 15 | 10 | 125 | 125 | 15 |
| PV1 | 25 | 25 | 18 | 175 | 175 | 28 |
| PV1.5/1 | 40 | 25 | 18 | 225 | 175 | 28 |
| PV1.5 | 40 | 40 | 26 | 225 | 200 | 42 |
| PV2 | 50 | 50 | 38 | 300 | 220 | 50 |
Spindles are made of PTFE.
Flush bottom valve
All spherical and cylindrical vessels are supplied with valve seat in the bottom outlet to get a perfect fit to a bottom outlet valve. Bottom outlet valve helps in preventing the accumulation of solids or liquid in the bottom outlet of a vessel. The bottom outlet valve can be incorporated into any type of cylindrical and spherical vessel. Bottom outlet valves are available from 25-50DN sizes.
| Cat. Ref. | DN | DN1 | DN2 | d | L | L1 | L2 | B |
| BAL1 | 25 | 25 | 25 | 18 | 260 | 105 | 150 | 190 |
| BAL1.5 | 40 | 25 | 25 | 26 | 260 | 105 | 150 | 190 |
| BAL2 | 50 | 40 | 25 | 38 | 260 | 105 | 150 | 190 |
Spindles are made of PTFE.
Straight Through Valve
We are providing an excellent quality range of Straight Through Valves to our customers. Our Straight Through Valve are highly admired for its excellent quality and reliability. The straight through valve are available in 15 DN to 50 DN as shown below.
| Cat.Ref. | DN | DN1 | d | L | H |
| PV0.7 | 15 | 15 | 10 | 125 | 125 |
| PV1 | 25 | 25 | 18 | 175 | 175 |
| PV1.5/1 | 40 | 25 | 18 | 225 | 175 |
| PV1.5 | 40 | 40 | 26 | 225 | 200 |
| PV2 | 50 | 50 | 38 | 300 | 220 |
Spindles are made of PTFE.
Vacuum Valves
Vacuum valves are used for attaining a vacuum to allow the flawless flow of fluids or other materials.
Vacuum valves are manufactured under the stern guidance of our ingenious professionals using quality-tested glass and progressive techniques.
As per the specific demands of clients, we offer these Vacuum Valves in various designs and lengths at the most competitive prices.
| Cat.Ref. | DN | D | d | L | L1 | L2 | L3 |
| PVW 1/0.7 | 25 | 12 | 10 | 280 | 55 | 85 | 160 |
| PVW 1.5/0.7 | 40 | 12 | 10 | 280 | 65 | 85 | 160 |
Spindles are made of PTFE.

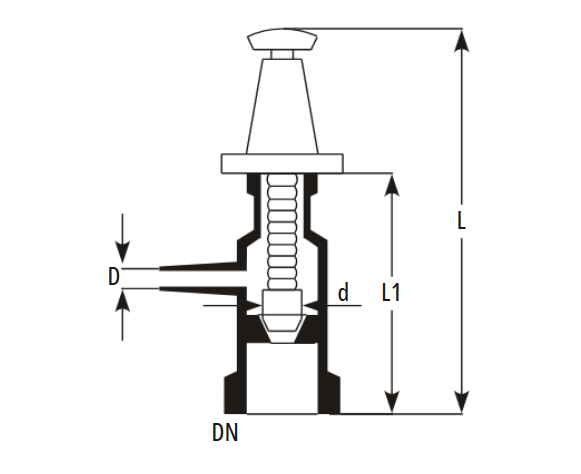

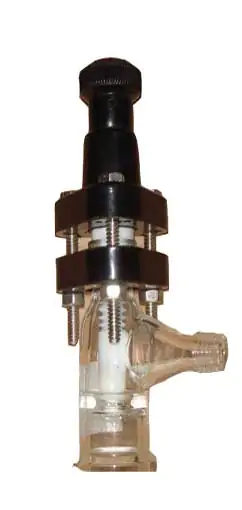

Vent Valves
Suitable for industrial or laboratory use, these vent valves are designed to restrict or control the flow of fluids. Vent valve is designed and manufactured at in-house production unit by utilizing pristine quality raw materials and sophisticated techniques. The offered Vent Valves are available with us in different designs and sizes to suit the varied demands of clients. Vent valve is available from 15-40DN in size
| Cat.Ref. | DN | D | d | L | L1 |
| PVV0.7 | 15 | 11 | 10 | 125 | – |
| PVV1 | 25 | 11 | 10 | 150 | 85 |
| PVV1.5 | 40 | 11 | 10 | 150 | 95 |
Spindles are made of PTFE.

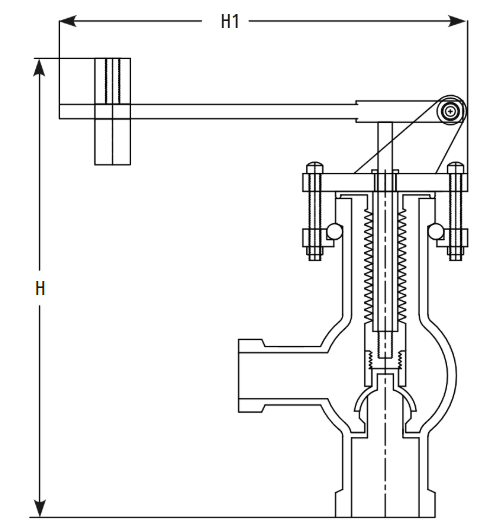

Weight Operated Pressure Relief Valve
The pressure relief valve (WPRV) is a valve used to control or limit the pressure in a system or vessel which can build up by a process upset, instrument or equipment failure, or fire.
In a pressure relief valve, the pressure is relieved by allowing the pressurized gas/fluid to flow out of the system.
The pressure relief valve is designed or set to open at a predetermined set pressure to protect Glass vessels and other equipment from being subjected to pressures that exceed their design limits.
When the set pressure is exceeded, the pressure relief valve is forced open and a portion of the gas/fluid is released maintaining the required system pressure.
Weight operated pressure relief valve is constructed of glass and PTFE. The sealing of moving parts is affected by a PTFE bellows.
The maximum recommended operating temperature is 150 C and a range of pressure as mentioned below. It should be installed with the spindle vertical and adequate support should be given
| Model | Size | Pr. range(BAR.g) | Appx. Height(H) | Appx. Weight(H1) |
| WPRV-1.5 | DN40 | 0.4/0.7/0.9 | 240mm | 275mm |
| WPRV-2 | DN50 | 0.1/0.2/0.3 | 270mm | 275mm |
*Spindles are made of PTFE.
